Complete Factory Zinser 451 Ring Spinning Frame 12,392 Acrylic Year-2007~2015

6 Sets Savio Espero Volufil WidthNA Yarn Processing Year–2003

Machine Type : Volufil Automatic Winder for yarn voluminization and shrinkage (shrinking / bulking / heat setting + winding)
Process Result : Dimensional stability, higher volume/roundness, improved dye absorption, wool-like appearance
Applications : Dyeing, knitting, home furnishing
Max Winding Speed : Up to 1,000 m/min (depending on required thermal treatment)
Package Formation : Digital yarn layering (Multicone), electronic thread guide control via PC interface

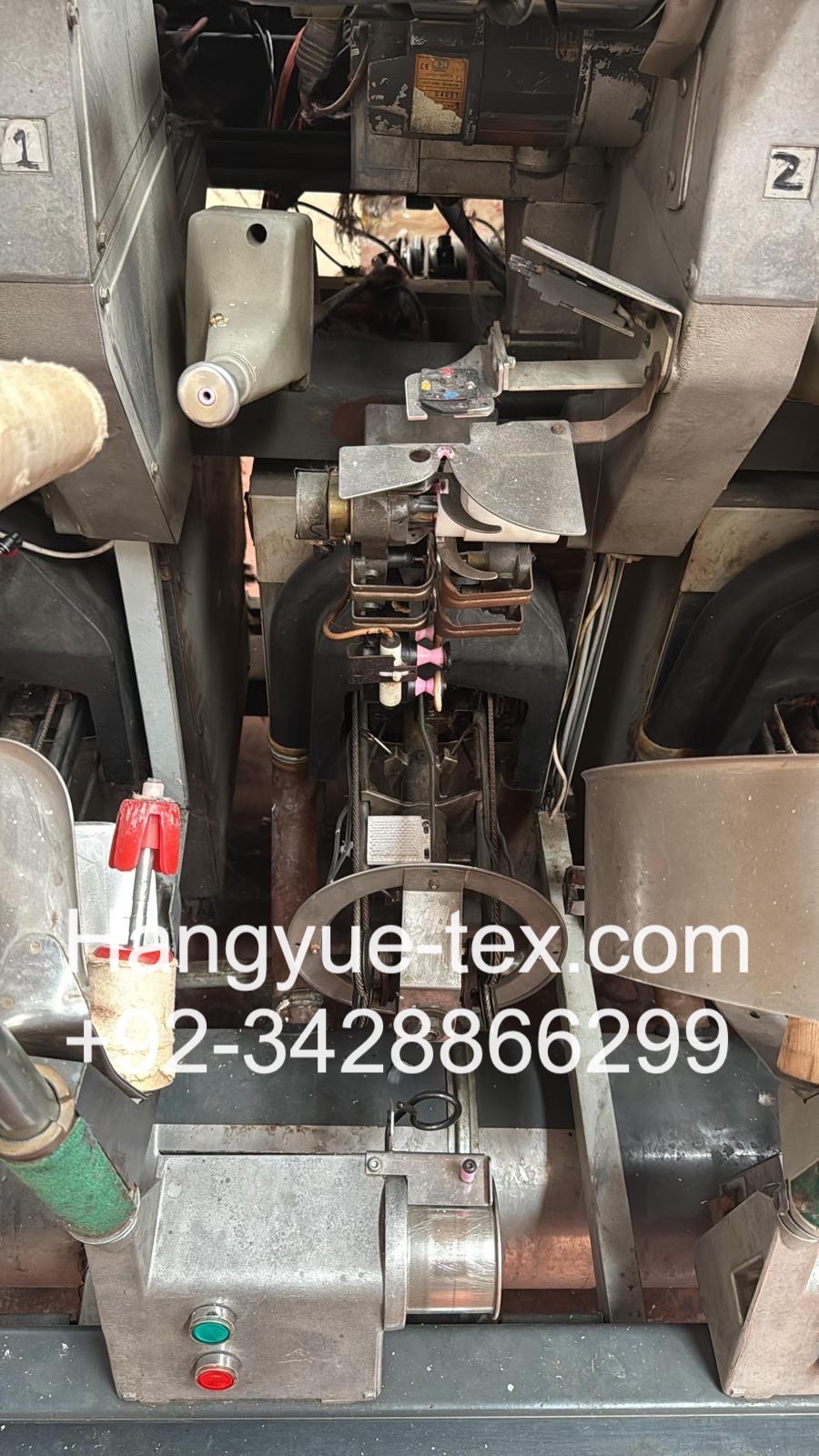

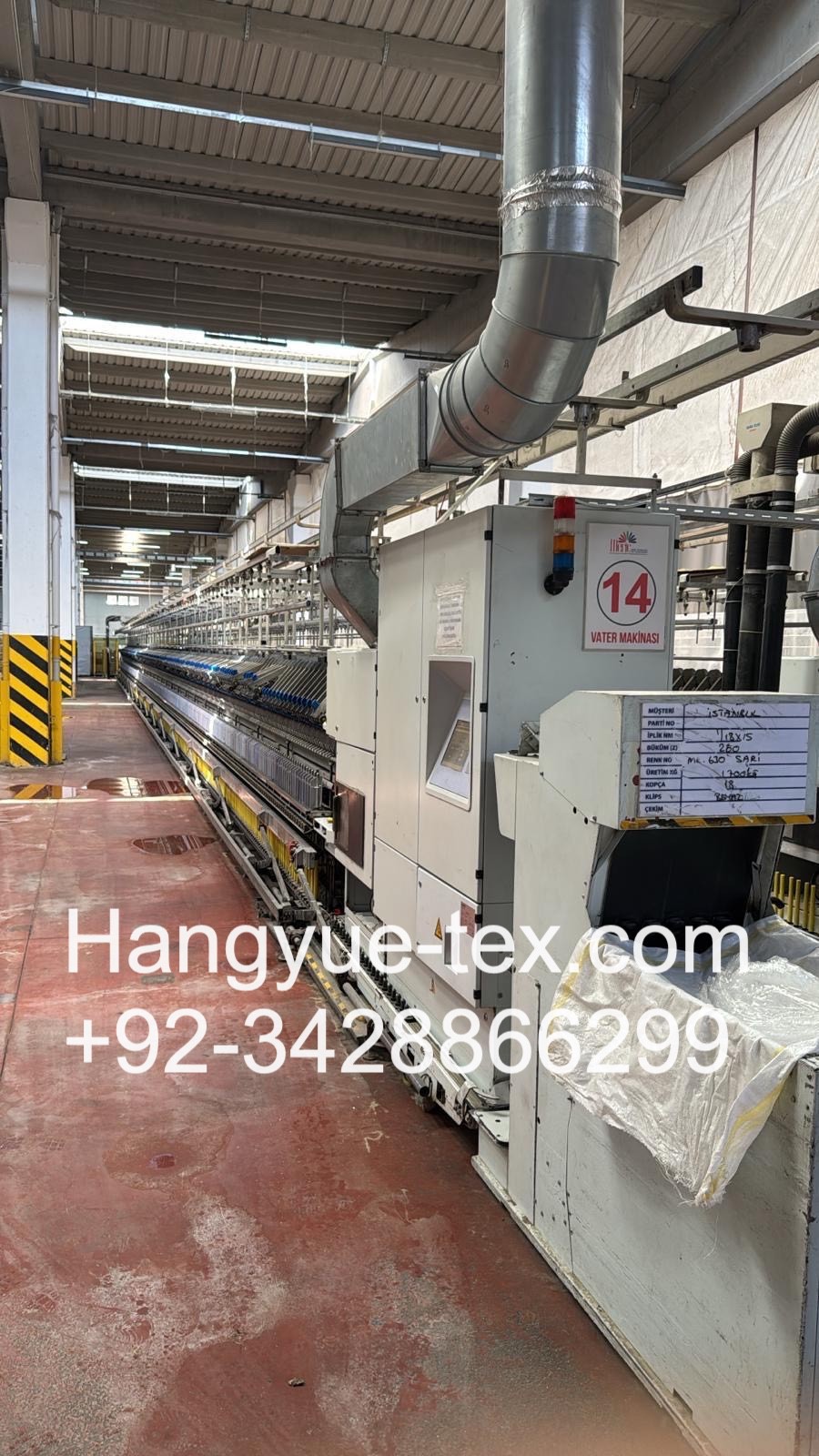

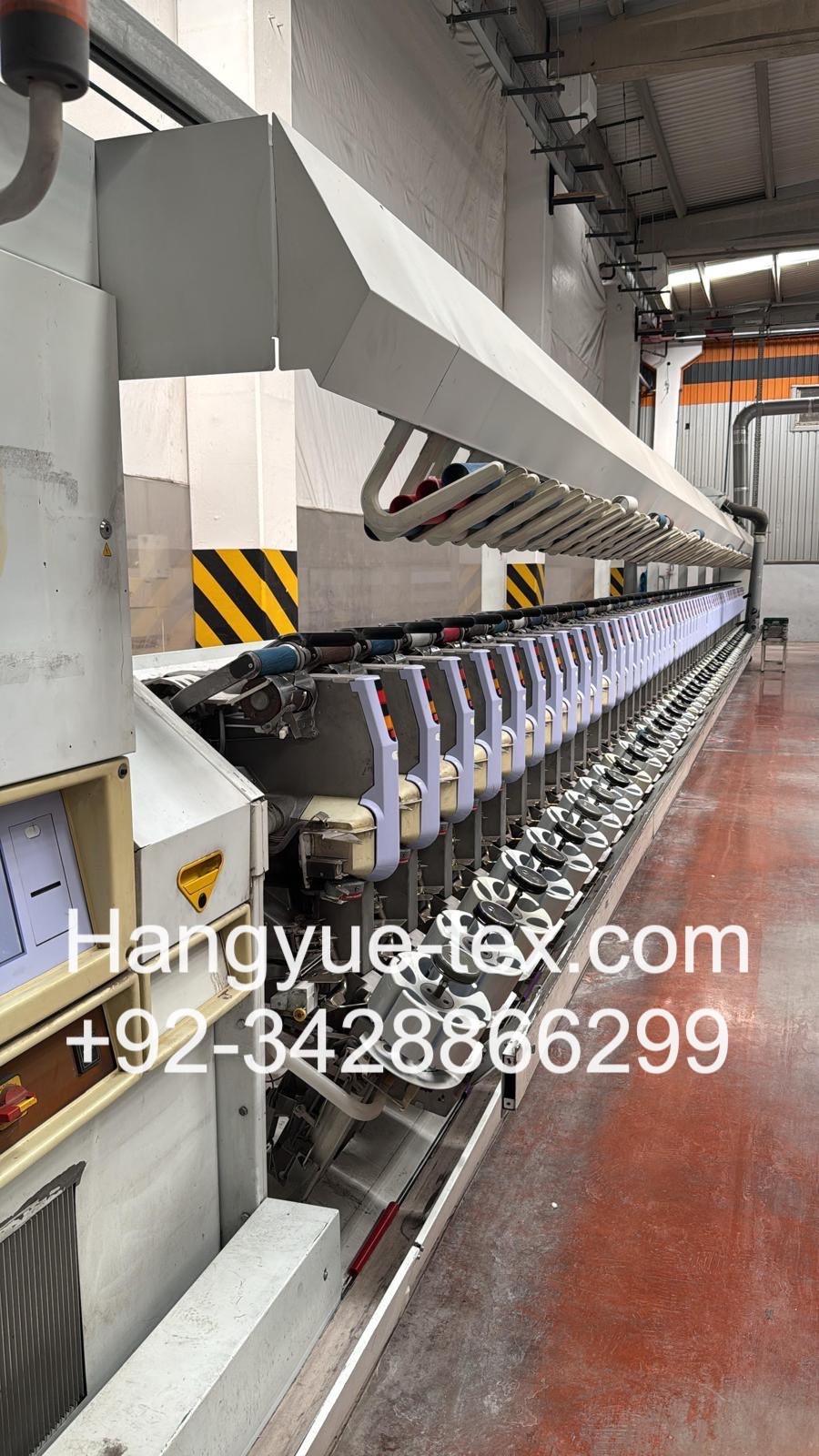

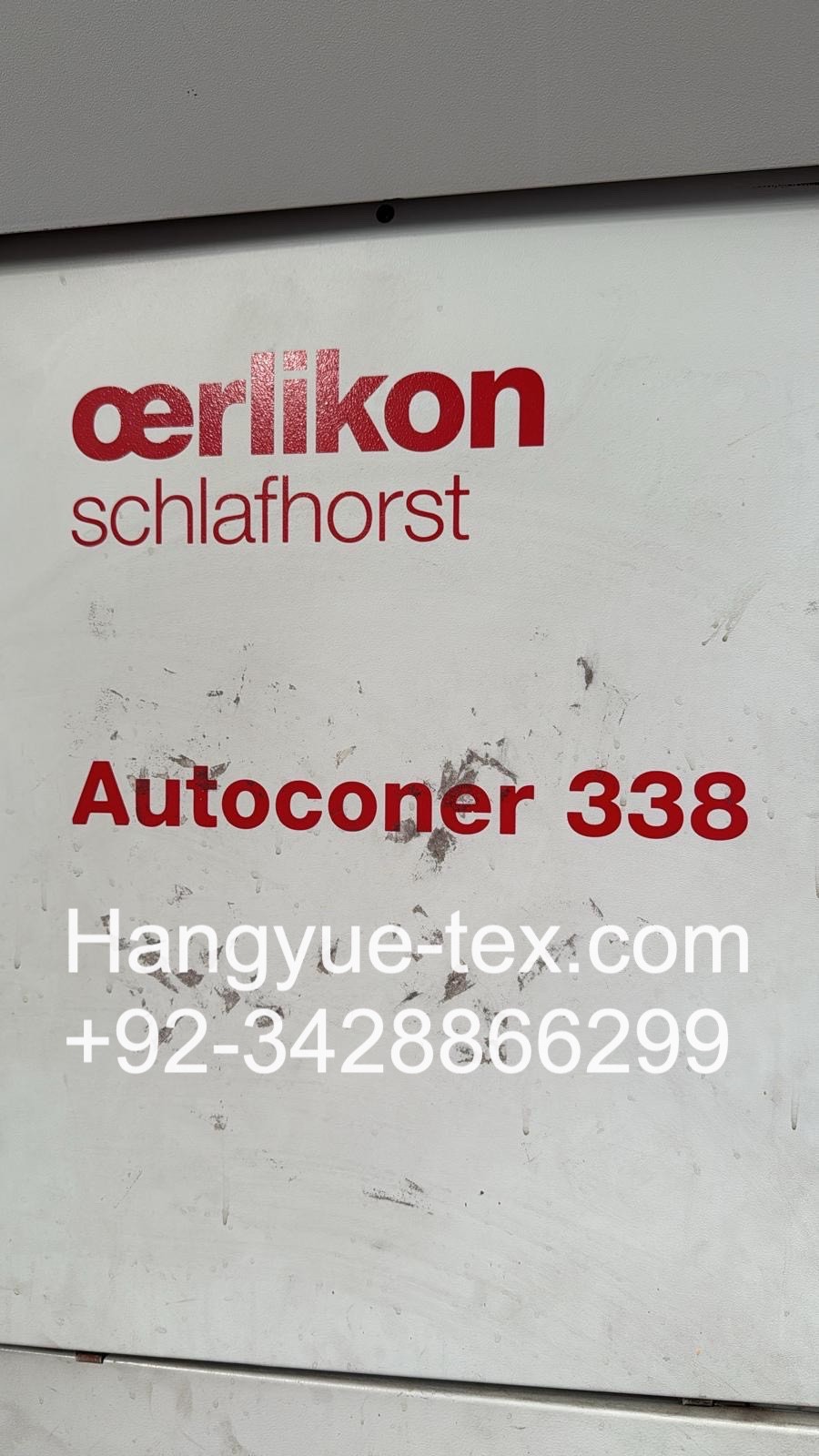

5 Sets Saurer Schlafhorst Autocorner 338 FM WidthNA Auto Winding Year–2007

Machine Type : Automatic Cone Winding Machine (Autocorner 338 FM)
Yarn Suitability : Simple or twisted yarns from natural or synthetic staple fibres
Fineness / Count Range : Nm 1.5 up to 290
Traverse : 6″
Winding Head Gauge : 640 mm
Max Winding Heads : Up to 30 heads (depending on configuration/sections)
Feeding Magazine : Up to 11 package remnants per winding head
Typical Equipment In Yarn Path : Yarn sensors, electromagnetic yarn tensioner, splicer, electric yarn clearer, yarn tension sensor
Optional : Waxing device
Electrical : 380V / 50Hz
Compressed Air : Max. 1.2 MPa

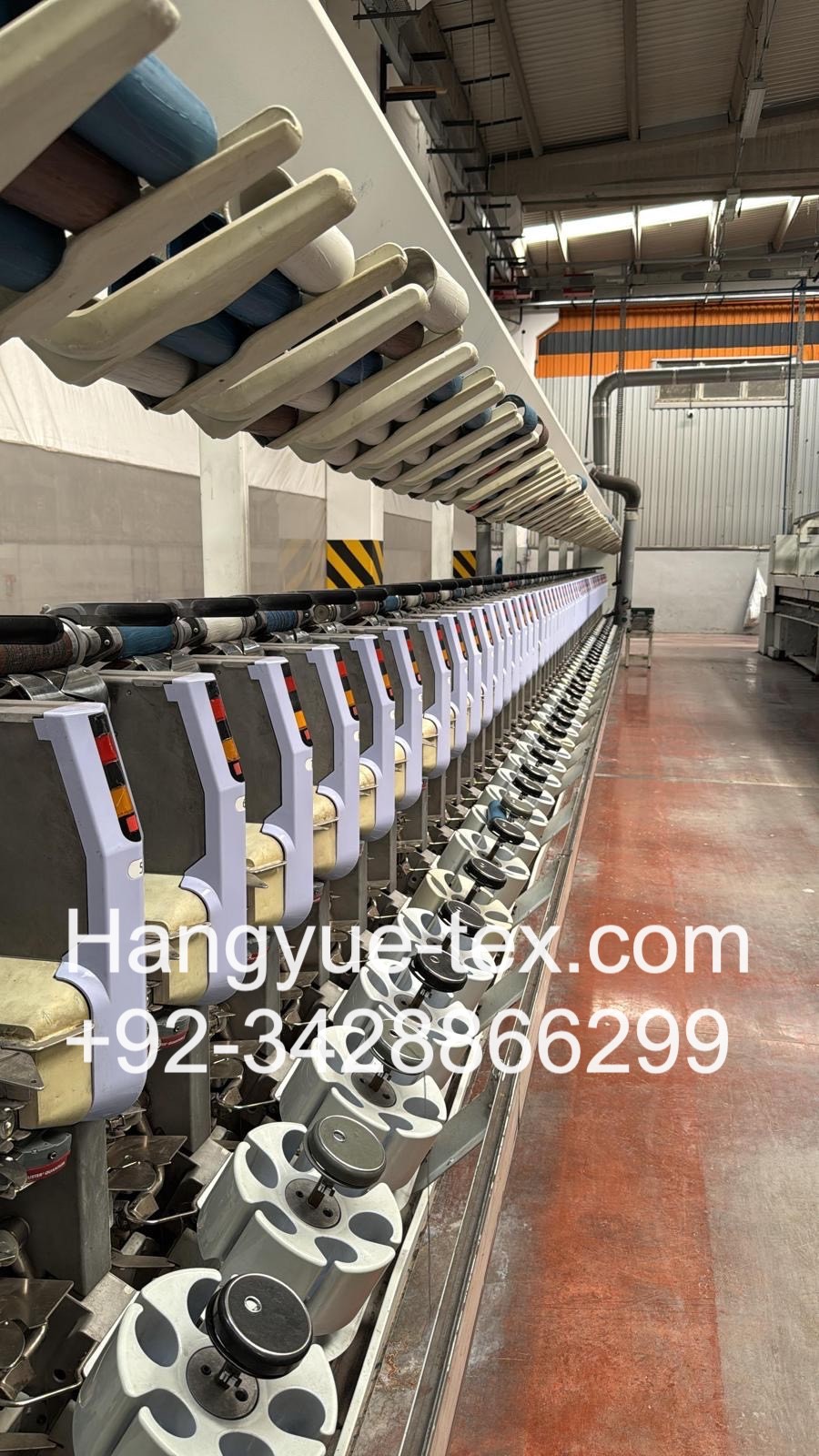

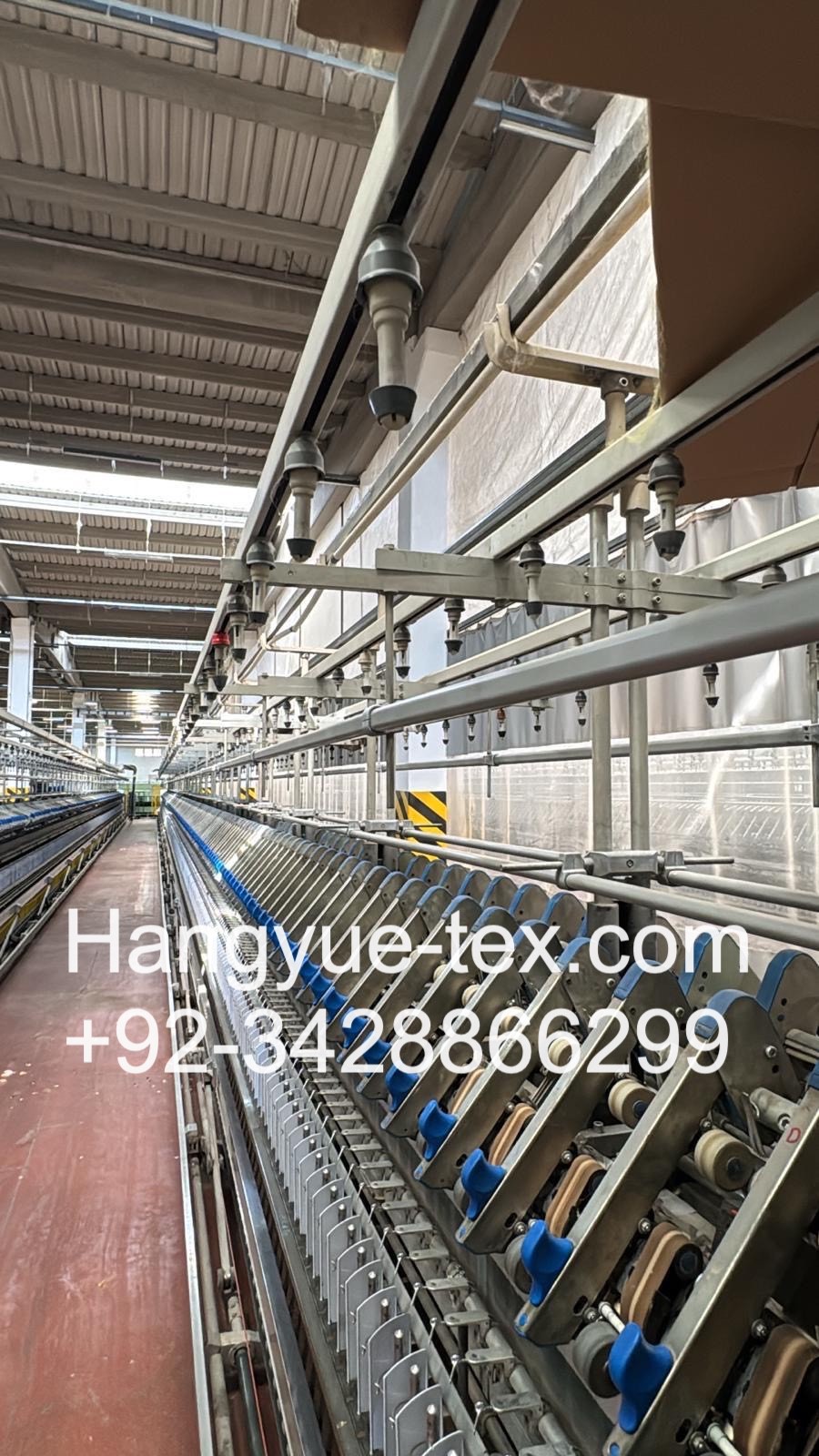

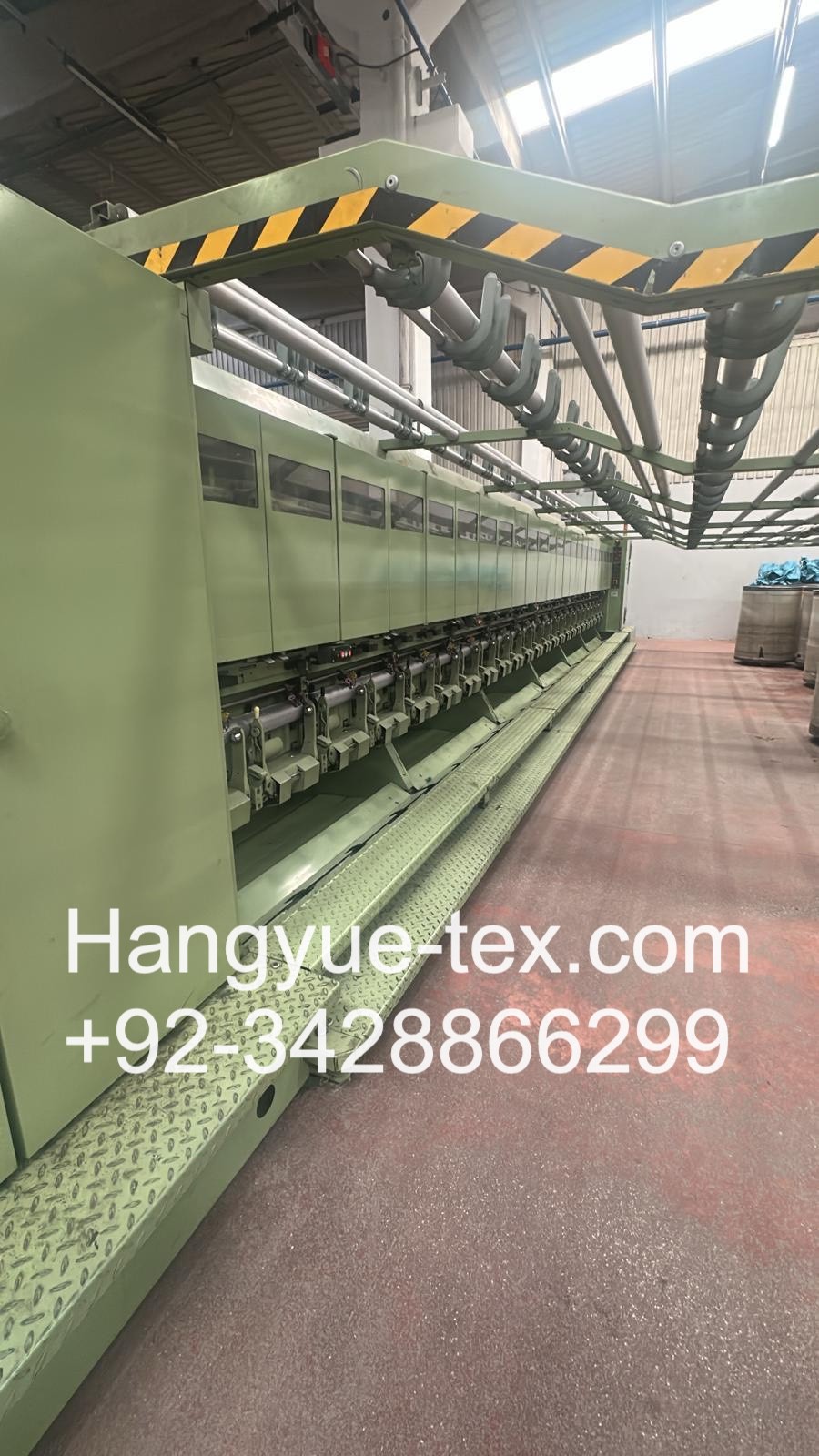

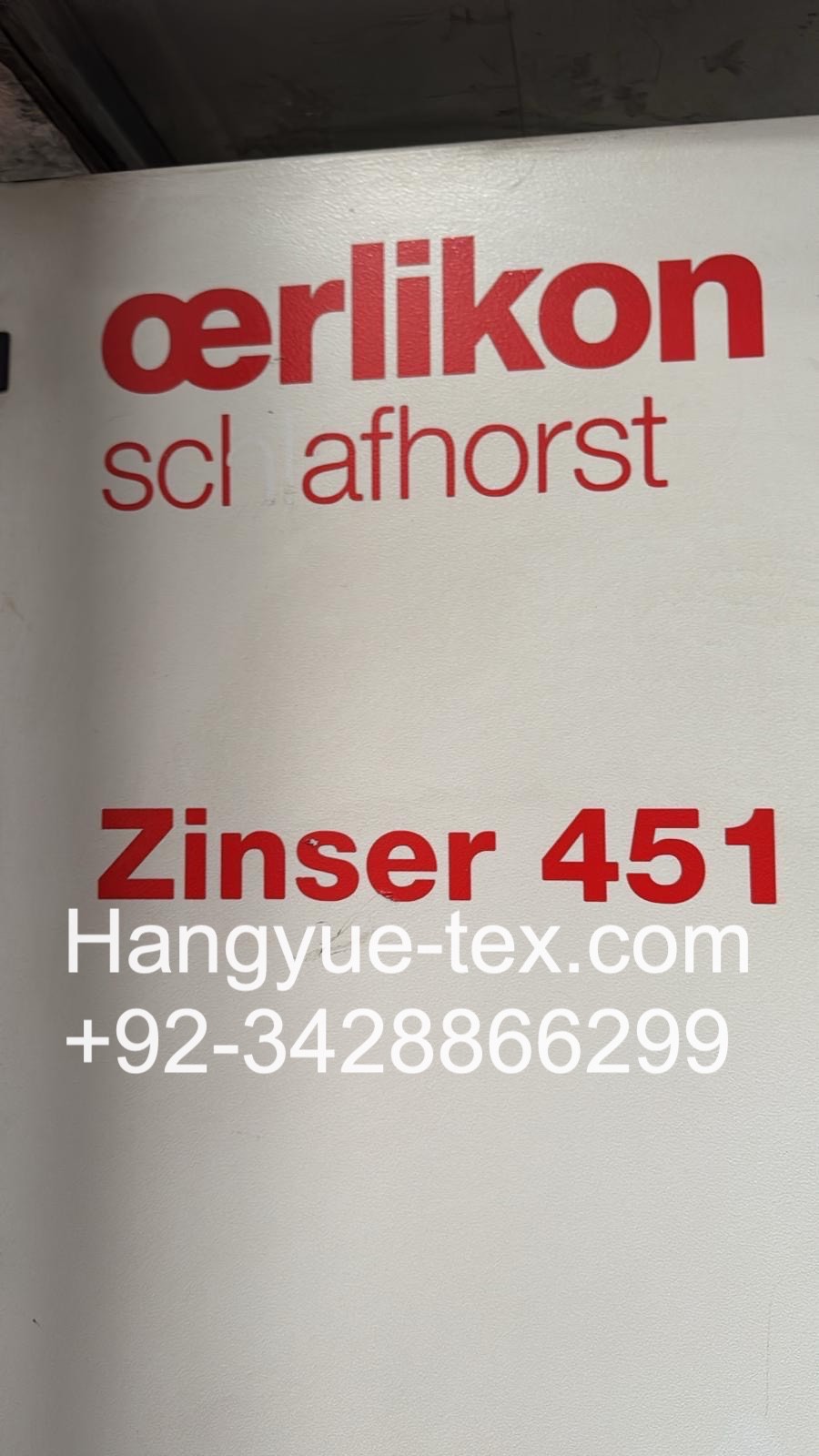

12 Sets Schlafhorst Zinser Ring Spinning Frame 451 WidthNA Ring Spinning Year–2015

Spinning System : Worsted / Semi-Worsted Ring Spinning
Application Area : Staple fibres up to 200 mm
Raw Materials : Wool, animal hair, silk, ramie, man-made fibres and blends
Count Range : 167–8 tex (Nm 6–120; Ne 5.3–106)
Twist Range : 100–3,500 T/m
Draft Range : 8–80 fold
Spindle Gauge (Machine Spec) : 75 mm / 82.5 mm
Ring Diameter (Machine Spec) : 42–60 mm
Tube Length (Machine Spec) : 220–260 mm
Number Of Spindles (Machine Spec) : 180–1,152 (Gauge 82.5 mm)

Spindles per Machine : 1116
Gauge Ecartement : 82.5mm
Ring Size : 57mm
Tube Length : 260mm
Tube Bottom Diameter : 22mm–24mm
Machine Type : Mechanical

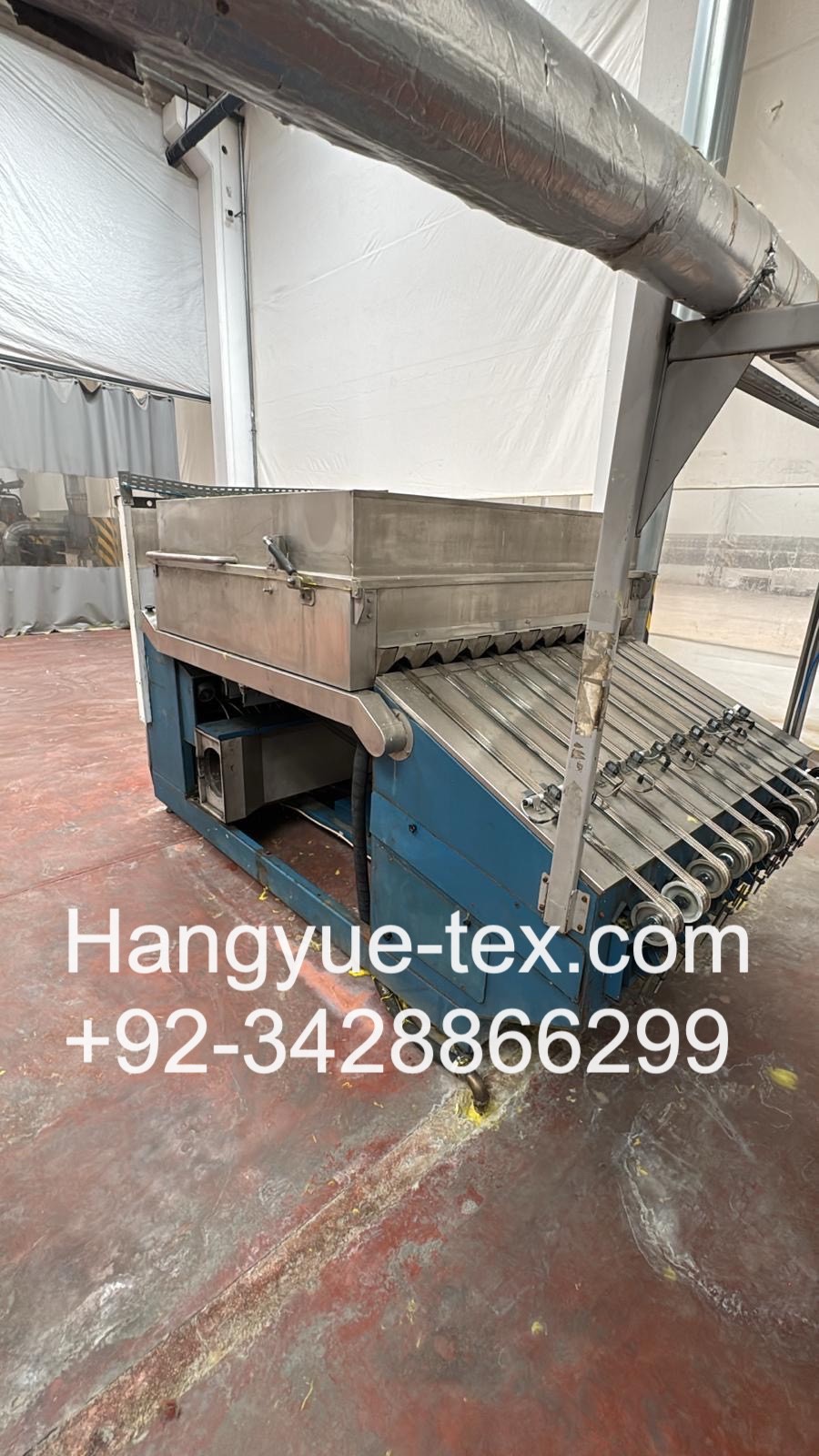

8 Sets Superba Univap Inflation Machine WidthNA Yarn Conditioning Year–1997

Machine Type : Continuous yarn steaming & shrinking / conditioning (relaxation / setting)
Function : Yarn conditioning by steaming and shrinking
Heating Method : Steam-heated (up to 98°C)

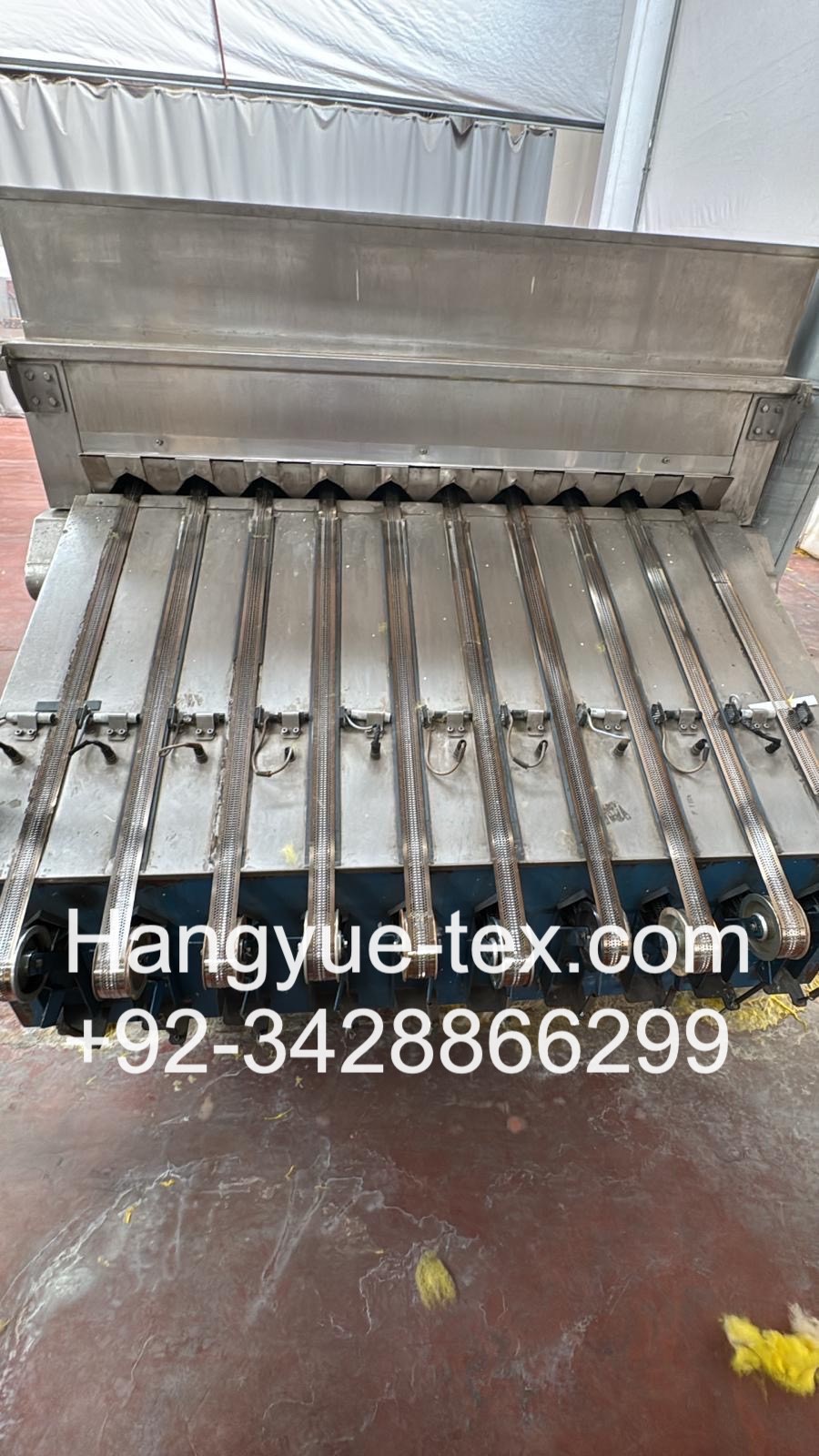

Conveyors : 10 perforated stainless steel tapes
Speed : Variable 300–600 m/min
Electrical : 380V / 3Ph / 50Hz
