Machine brand: Itema
机器品牌:Itema
Model: R9500
型号:R9500
Weaving type: Rapier
织造类型:剑杆织机
Working width: 210 cm
工作门幅:210 厘米
QTY: 7 Year 2012 – machines – Sr. Numbers: 79585, 79586, 79582, 79584, 79581, 79579, 79583
数量:7台,2012年—机器—序列号:79585,79586,79582,79584,79581,79579,79583
QTY: 3 Year 2013 – machines – Sr. Numbers: 81315, 81318, 81311
数量:3台,2013年—机器—序列号:81315,81318,81311
QTY: 2 Year 2015 – machines – Sr. Numbers: 85039, 85051
数量:2台,2015年—机器—序列号:85039,85051
Average running speed: 650 RPM
平均运行速度:650 转/分钟(RPM)
Weft colors: 8
纬纱颜色数:8色
Weft feeders: 2 × ROJ Luna X3 per machine
纬纱喂入器:每台 2 × ROJ Luna X3
Power supply: 400V / 50Hz
电源:400V / 50Hz

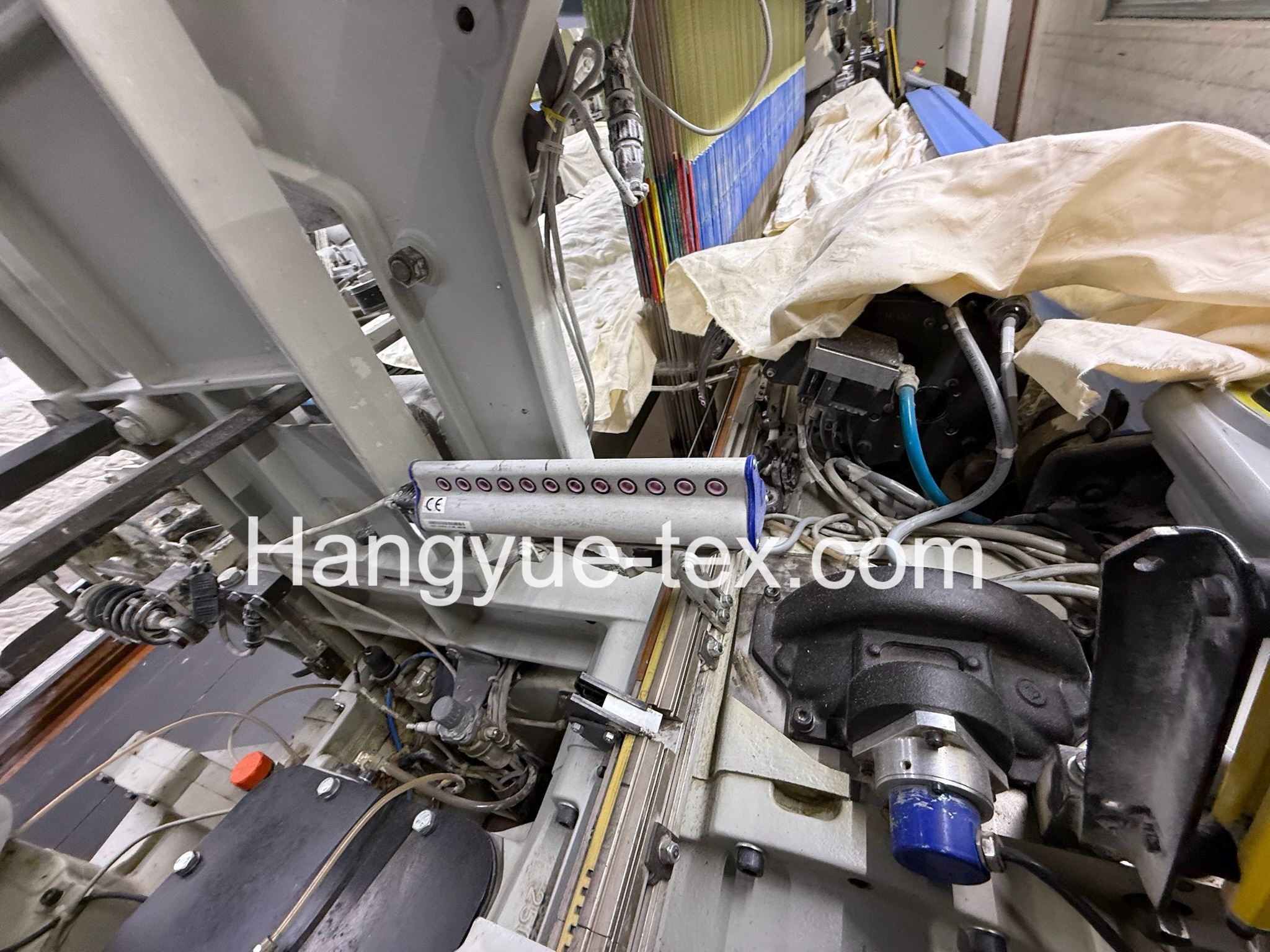

Stop motion bars: 6 with droppers fitted
断经停台装置:6根停经条(已配下垂片/综丝落片)
Beam configuration:
织轴配置:
Jacquard brand: Bonas
提花品牌:Bonas
Jacquard model: ZJS2
提花型号:ZJS2

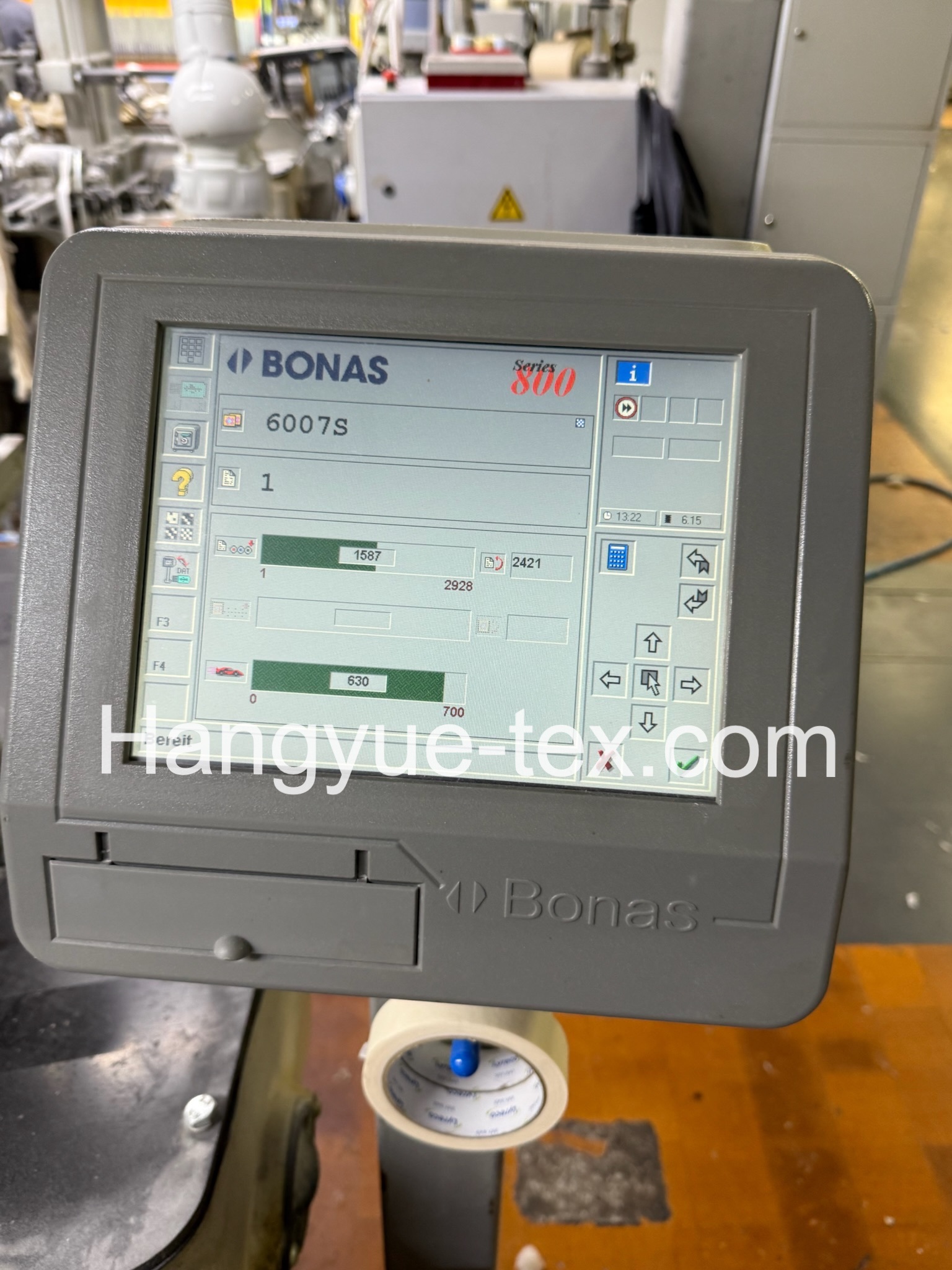

Controller: Series 800
控制器:800 系列
Hook capacity: 2688
针钩容量:2688
Hooks installed: 2688
已安装针钩数:2688
Beam supply:
织轴供应:
1 beam supplied with bottom beam machines
底轴机型:随机器配 1 根织轴
1 beam supplied with top beam machines
顶轴机型:随机器配 1 根织轴
Cloth roller: 1 cloth roll supplied with each machine
布卷辊:每台机器配 1 个布卷(布辊)
No extra beam or cloth roller available
无额外织轴或布卷辊可提供

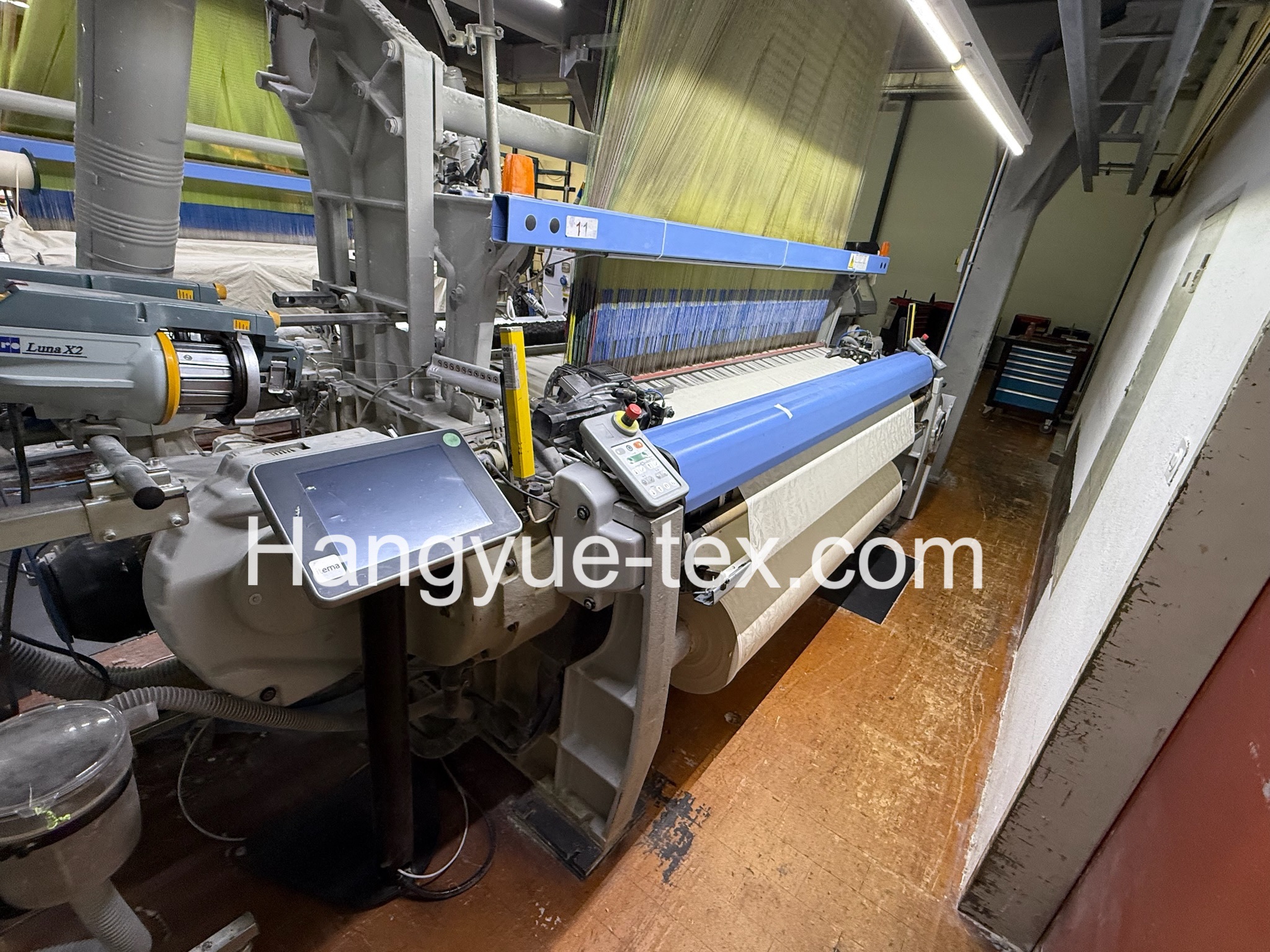

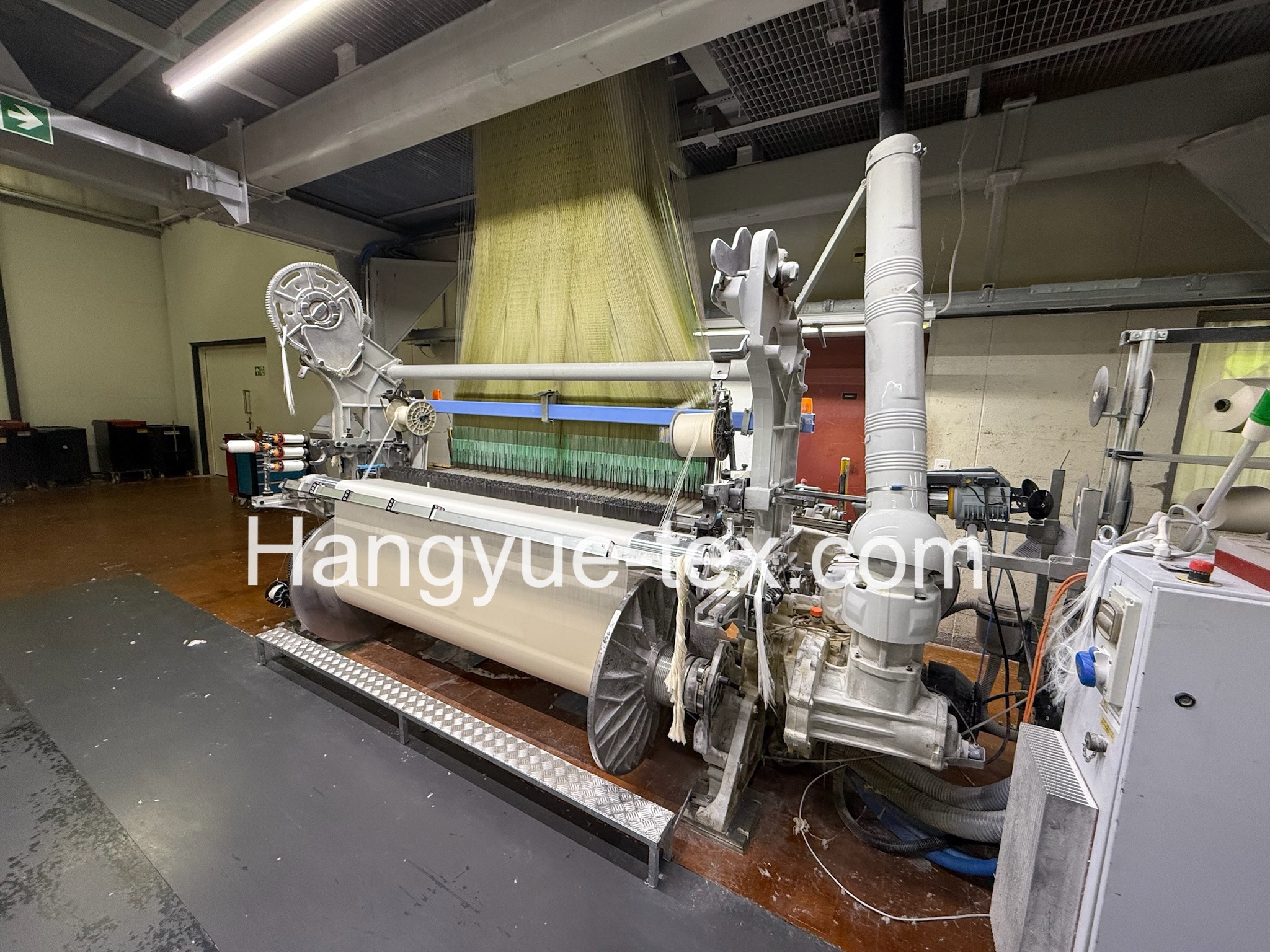

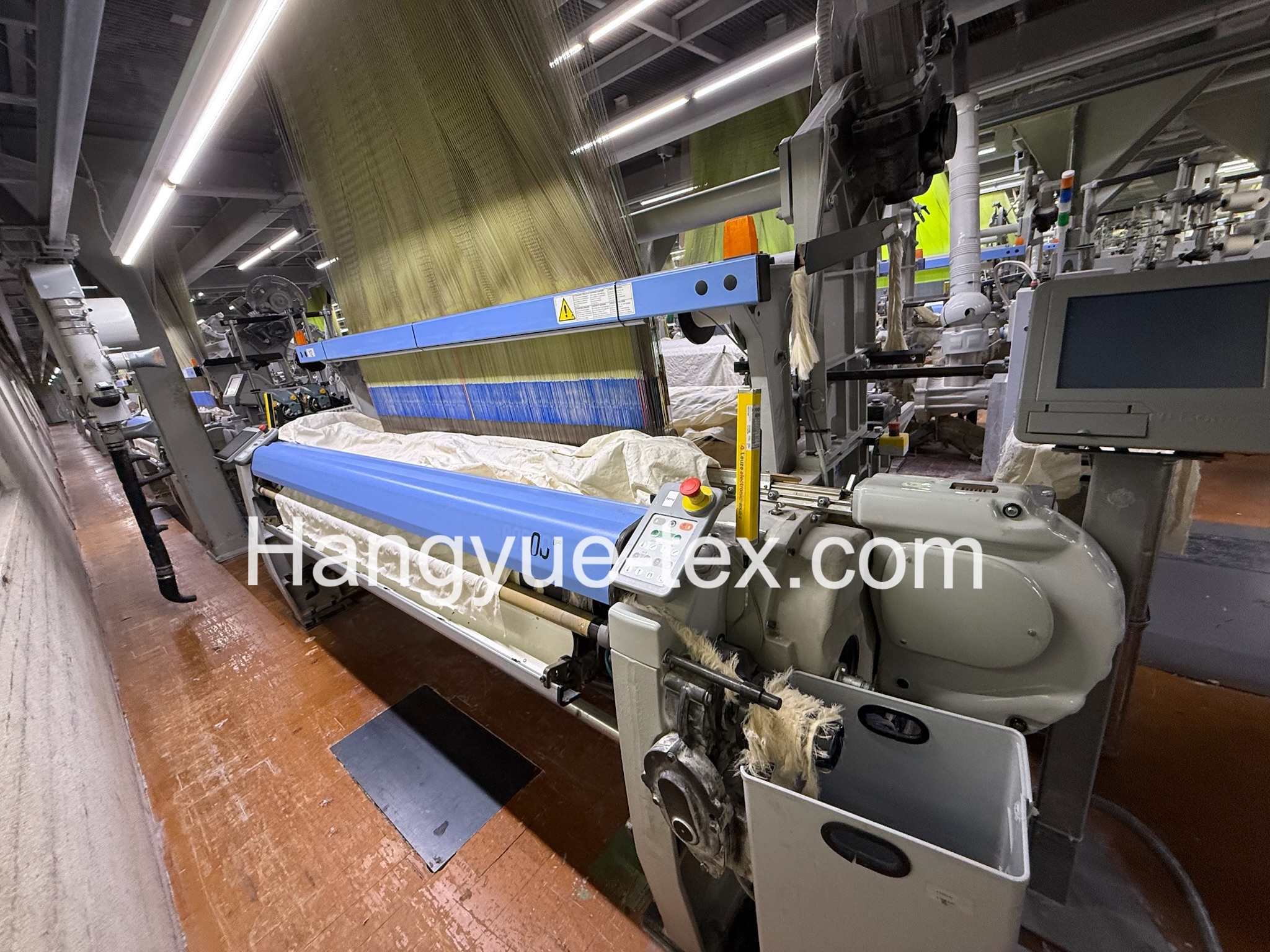

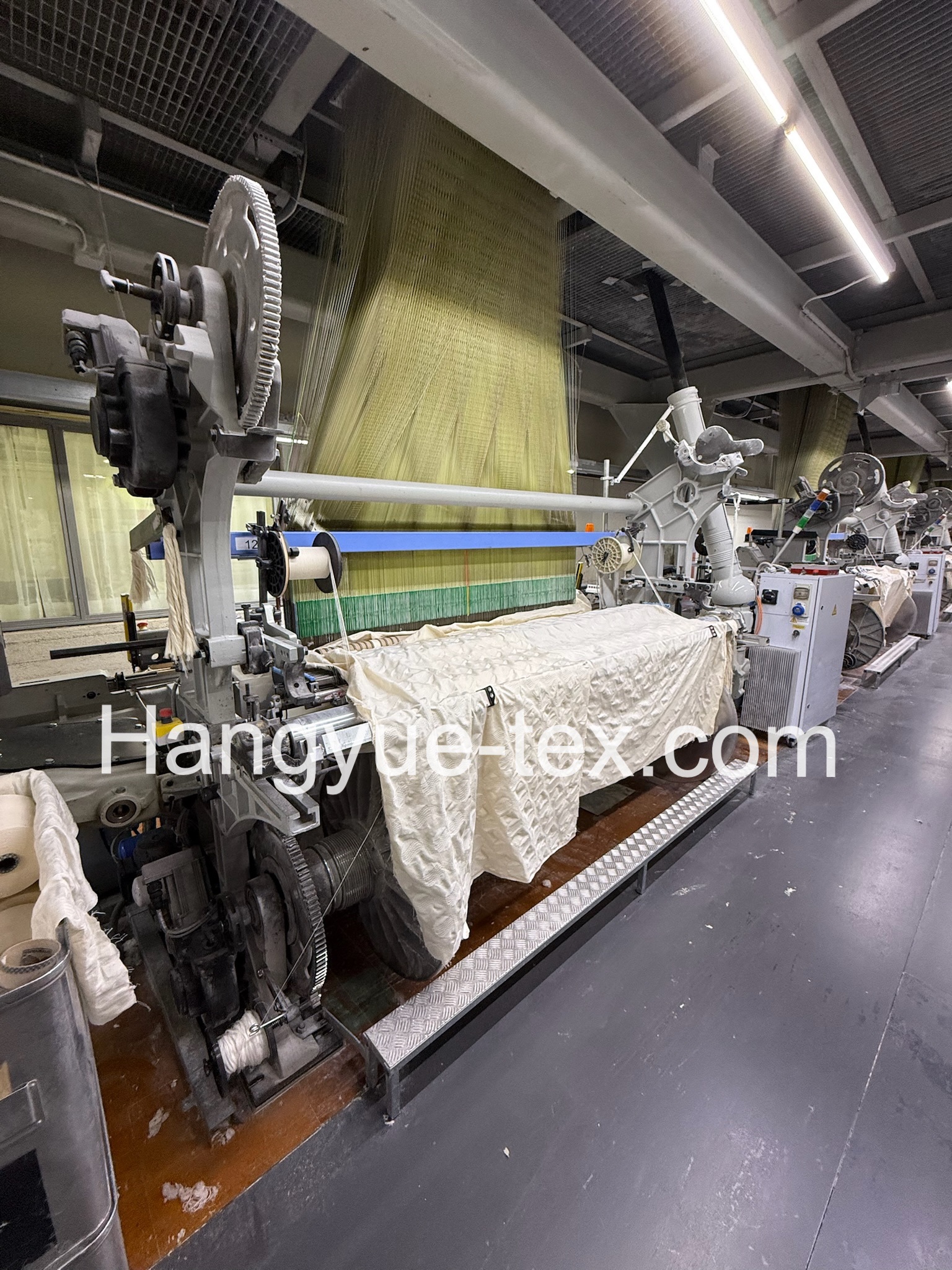

Itema R9500 Rapier Weaving Loom with Bonas Jacquard (2012–2015) is designed for patterned fabric production requiring precise rapier insertion and electronic Jacquard shedding. The offer includes 12 complete looms, with 7 units from 2012, 3 units from 2013, and 2 units from 2015, suitable for medium to high-speed weaving operations.
Each loom has a working width of 210 cm, operates at an average speed of approximately 650 RPM, and supports 8 weft colors. Weft insertion is handled by two ROJ Luna X3 weft feeders per machine. The looms are equipped with six stop motion bars with droppers fitted and operate on a 400V / 50Hz power supply.
Beam configuration varies between machines, with some supplied with bottom beam and others with top beam (top beam machines available at additional cost). Each loom is supplied with one beam according to its configuration and one cloth roller, with no extra beams or cloth rollers included.

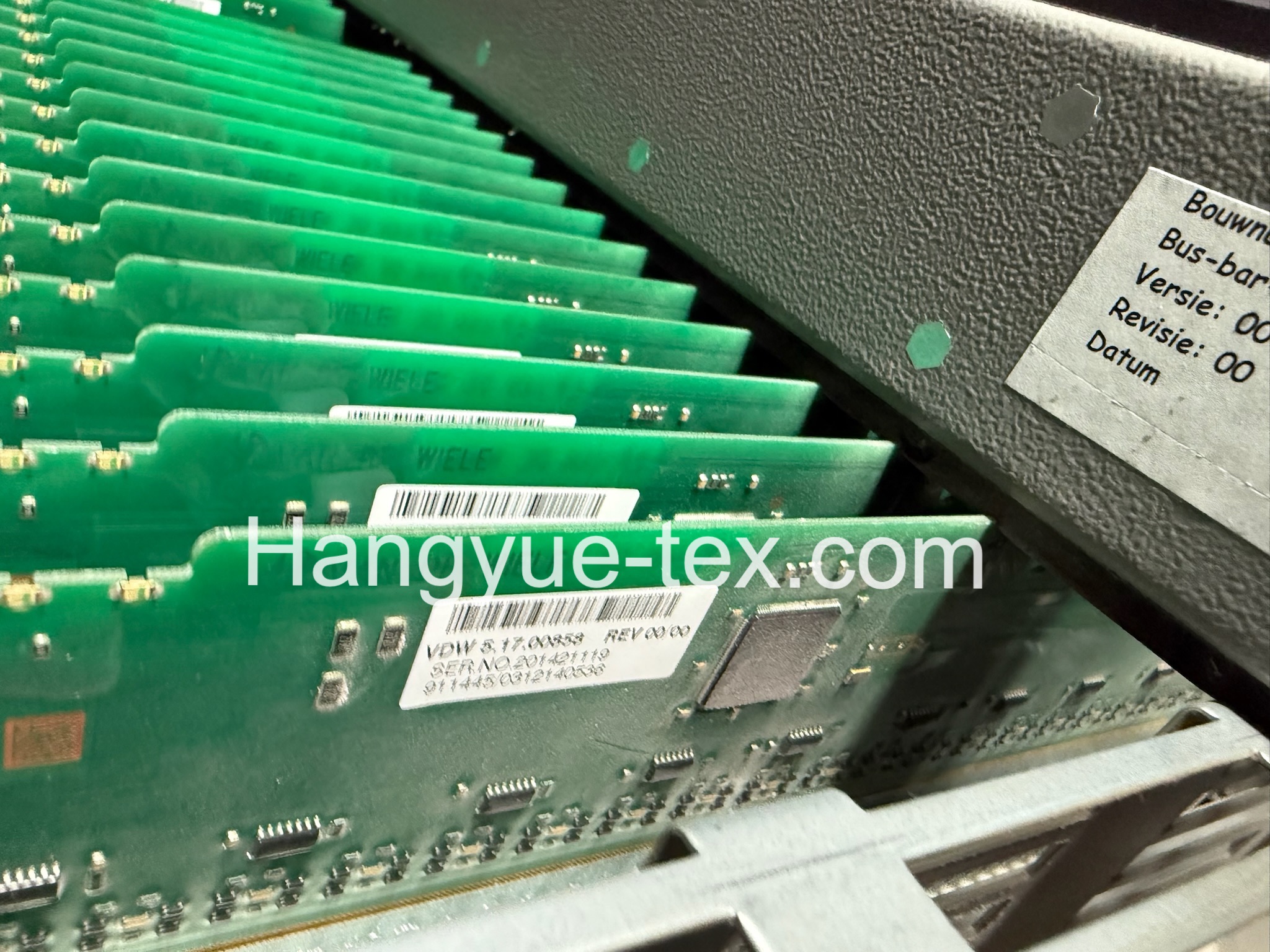

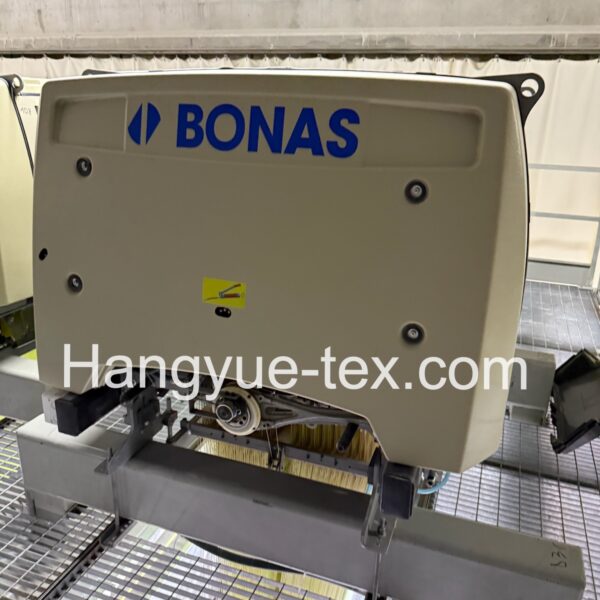

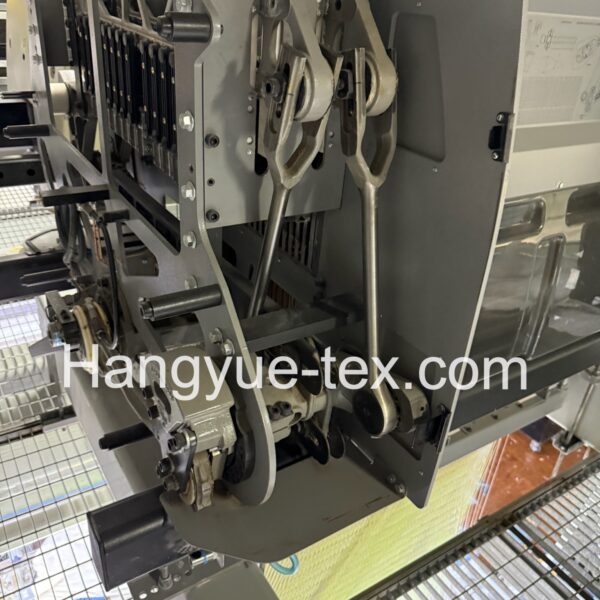

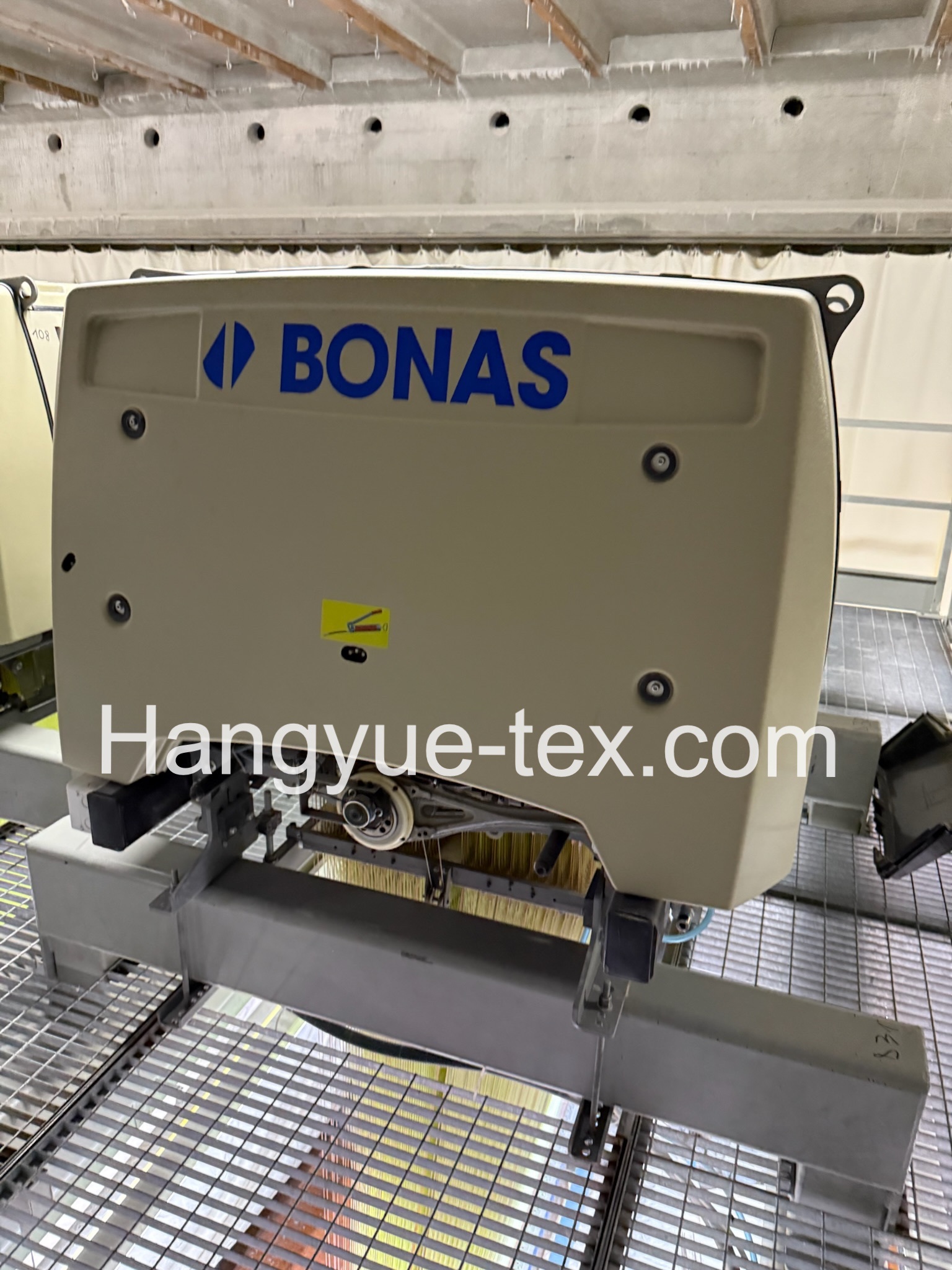

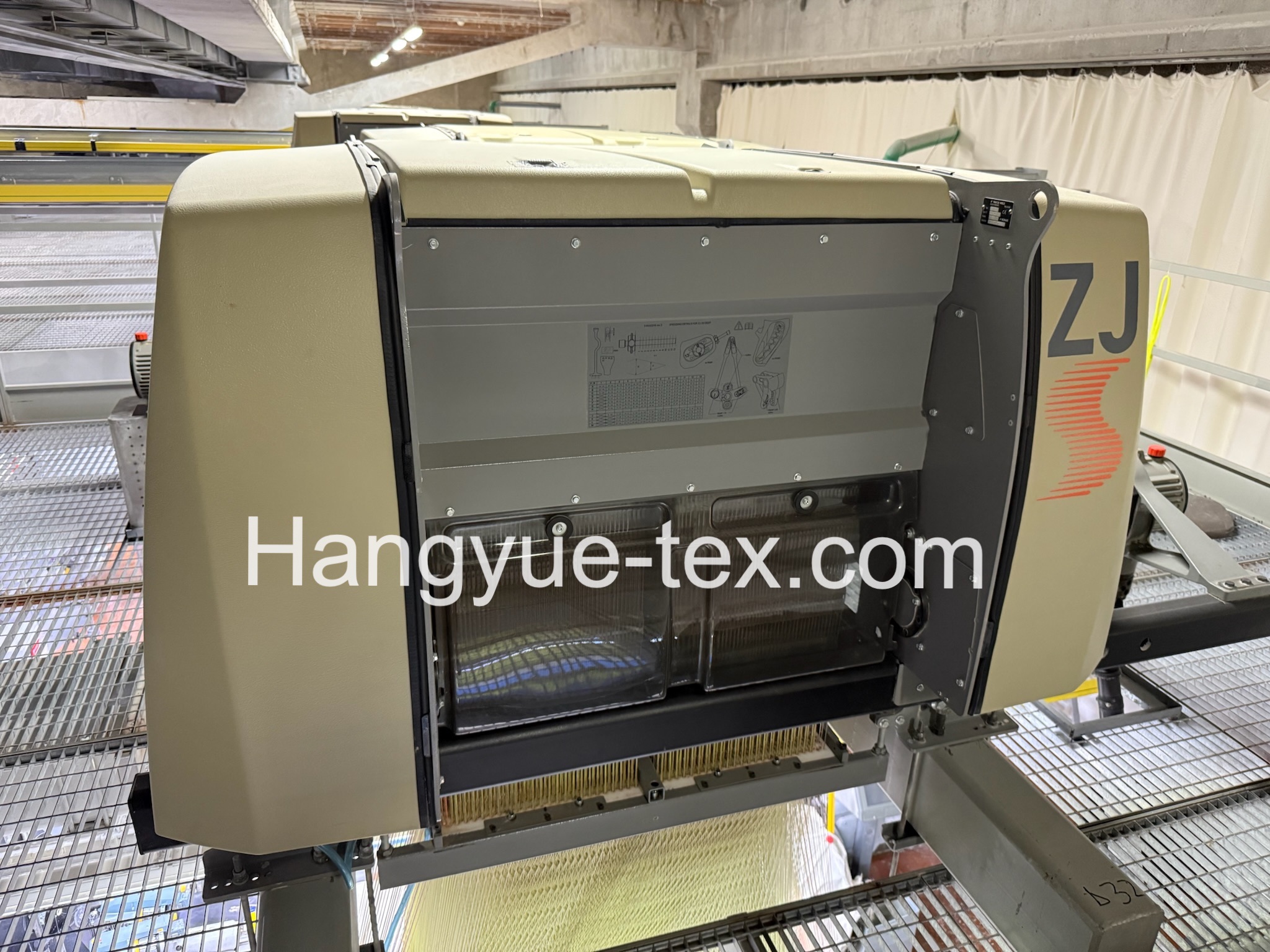

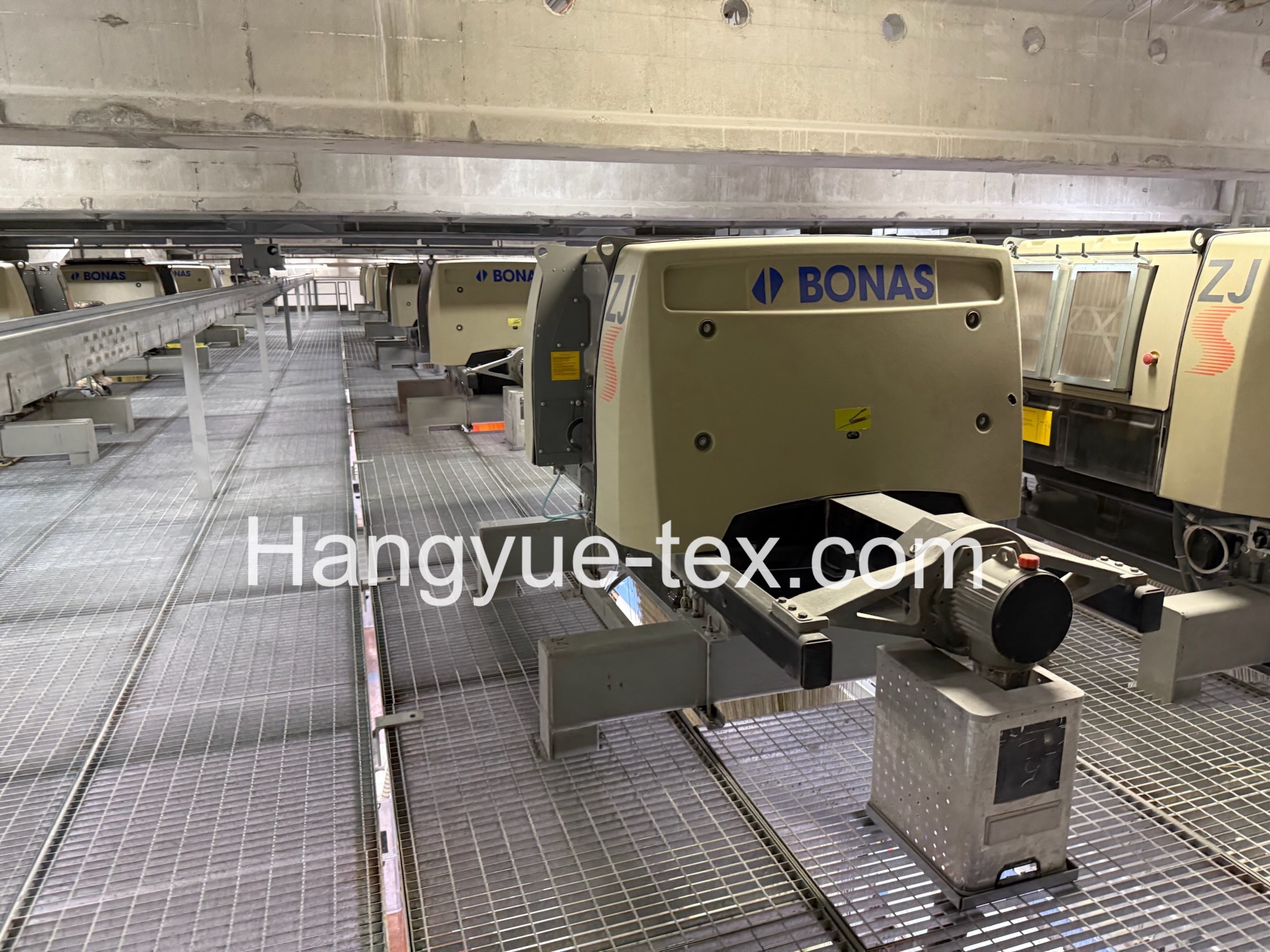

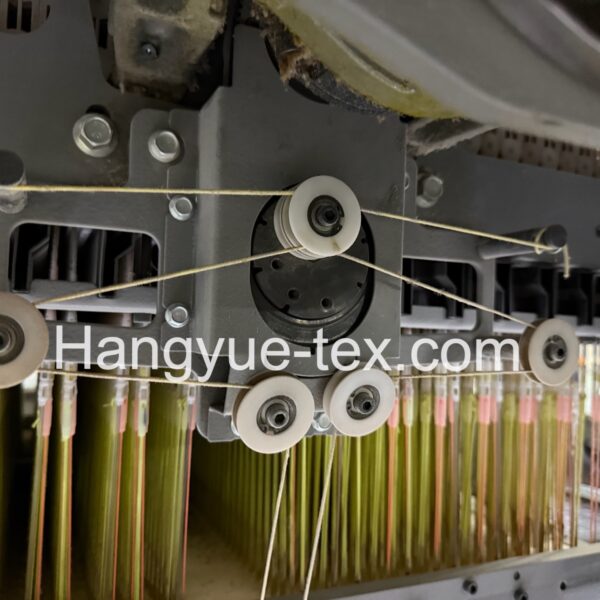

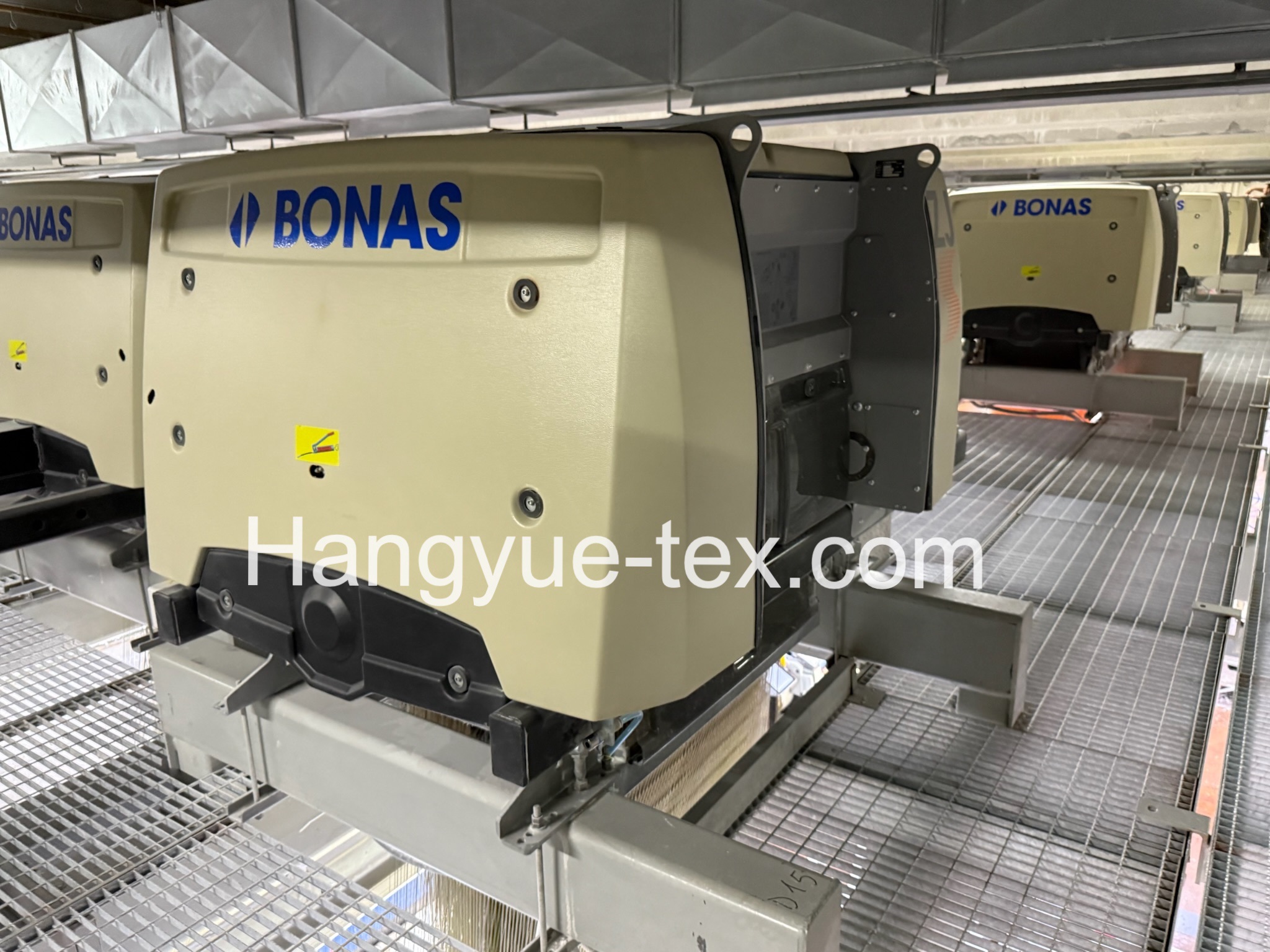

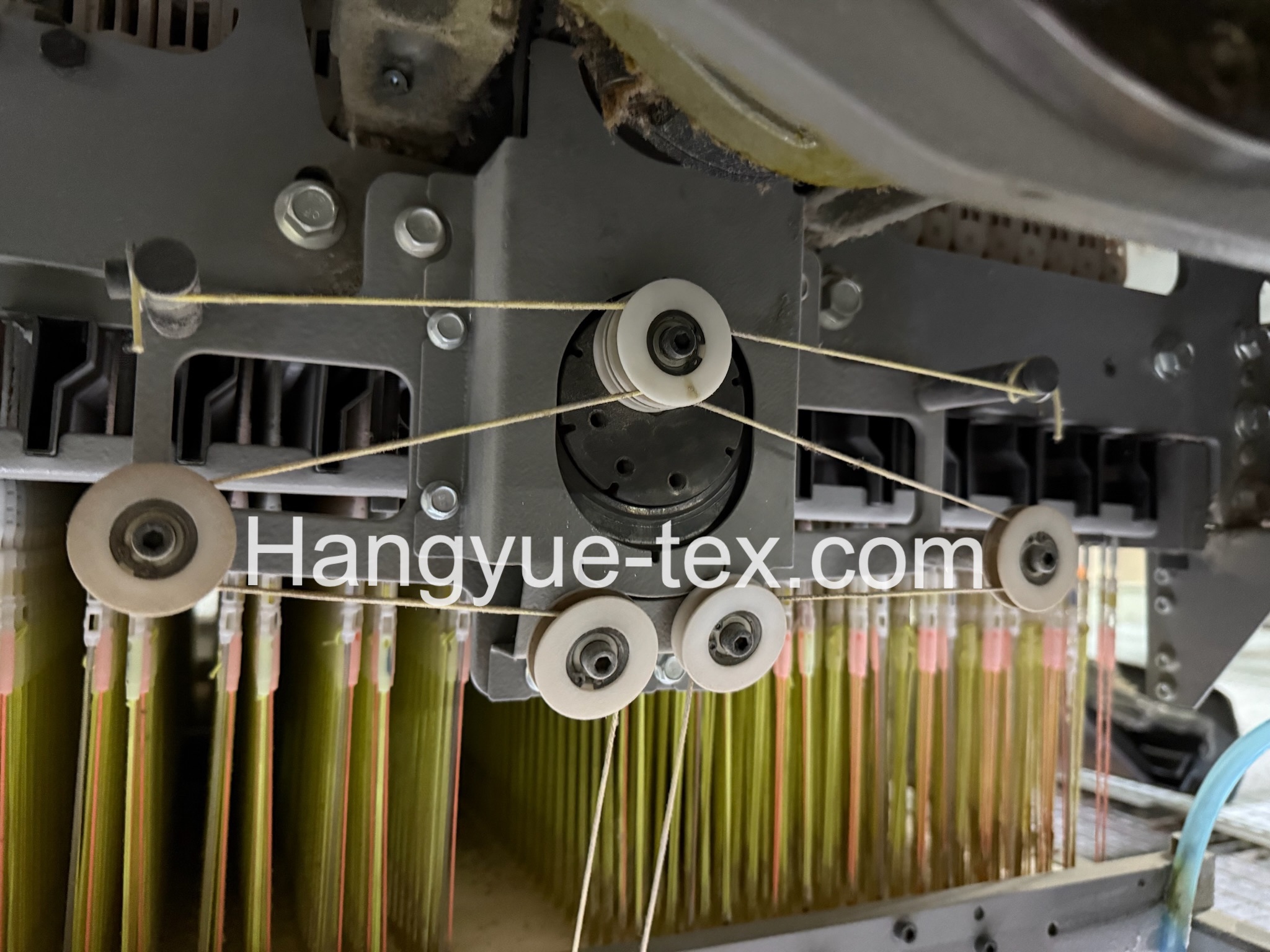

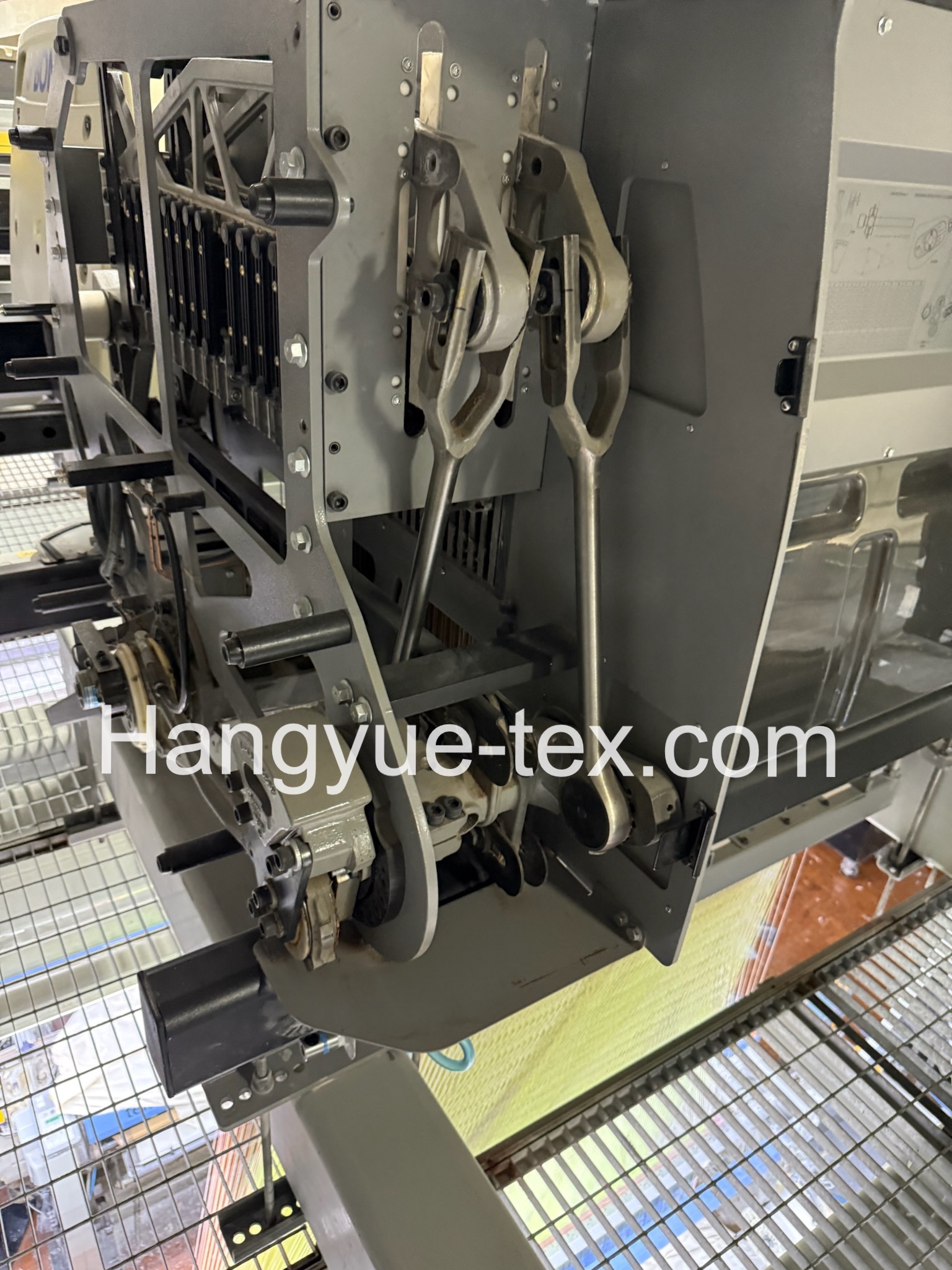

The Jacquard system is Bonas ZJS2, equipped with Series 800 controller and a hook capacity of 2688 hooks, with all 2688 hooks installed. Additionally, 3 extra Bonas Jacquard units complete with 2688 hooks are included in the package.
